Davitrac Portable Davitsystem

Description

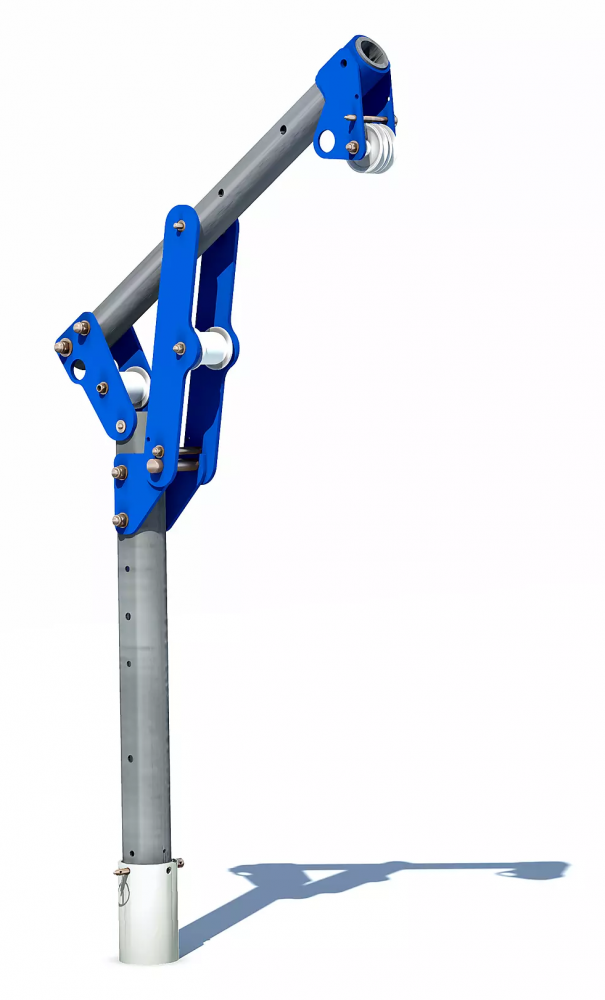

Davitrac davit system is a unique multi-function product certified for fall arrest, rescue and material lifting. It can be rotated 360 degrees (not H-Base art 210098), it is foldable, easy to use, compact and the weight is only 29,7 kg. On the top it is also equipped with 1 anchor point for fall arrest max 150 kg and 1 anchor point for material lifting max 500 kg.

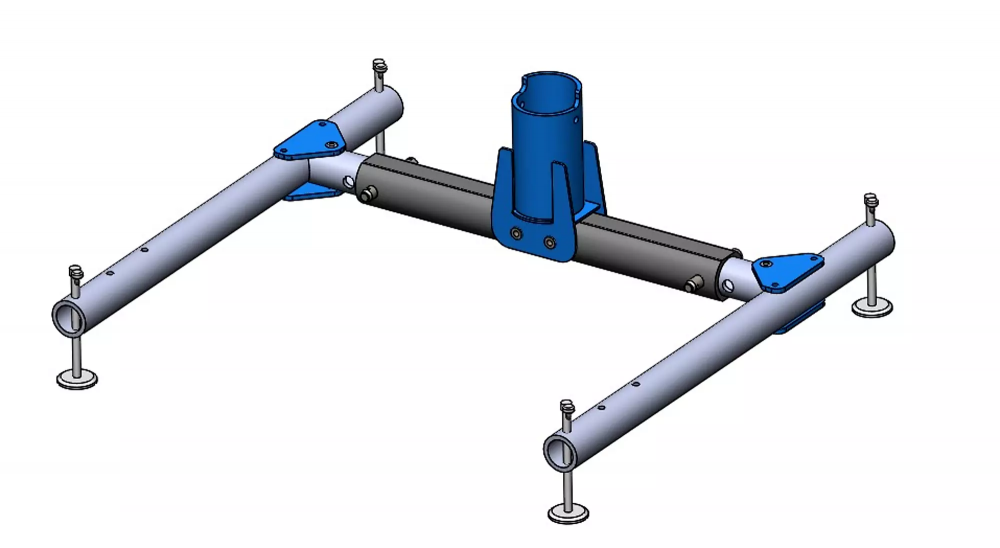

Portable self-stabilizing H-base which with Davitrac Davitsystem provides the opportunity for both fall protection, rescue and material lifting. It is foldable and light, which makes it easy to transport. It is adjustable to adapt as well as possible to the workplace. The assembly takes place without special tools, which provides quick and easy assembly. It is equipped with a stop that limits its rotation to 90 ° relative to its lift axis to prevent the load from falling. The base is delivered in three parts, 2 legs of 16.6 kg each and an adjustable base of 19.8 kg.

Configurations
Where you climb up / down a ladder, for example, and need fall protection and rescue in one and the same solution, choose fall arrest block with a built-in rescue winch.
If you need to lift a person suspended in a harness, you must supplement the fall arrest block with a Carol winch. The winch itself on the fall arrest blocks is only for rescue in an emergency, and is not intended for lifting a person for work purposes.
If you need to lift material, you choose one of the material lifting winches.

Certification
CE EN 795 Type B
CEN/TS 16415 B (Fall arrest for 2 users of 150 kg each)
Machine Directive 2006/42/CE (Material lifting max 250 kg)
