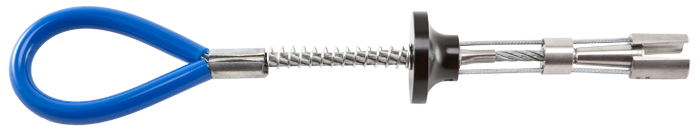

Removable Concrete Anchor 22kN EN795B ANSI

Description

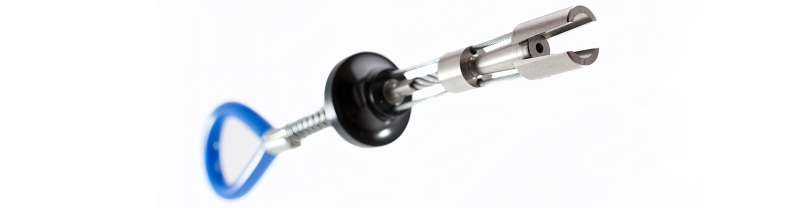

Climb Tech Concrete Anchor Devices are portable, reusable and can be used in vertical, horizontal or overhead concrete substrate surfaces. Once a suitable hole has been drilled, the anchors can be inserted and removed as required. These anchors are suitable for use for fall protection applications. This anchor should be placed into a hole at least 89mm (31/2”) deep.

Tech data
WLL: 140kg (310lbs)
Drill Hole Diameter: 20mm (3/4” )
Length: 293mm (111/2”)
MBS: 22kN (5,000lbf)

Approval
EN 795:1996 (+A1:2000) Class B, OSHA 1926.502 CE 0321, ANSI Z359.1-2007, ANSI Z359.7-2011
